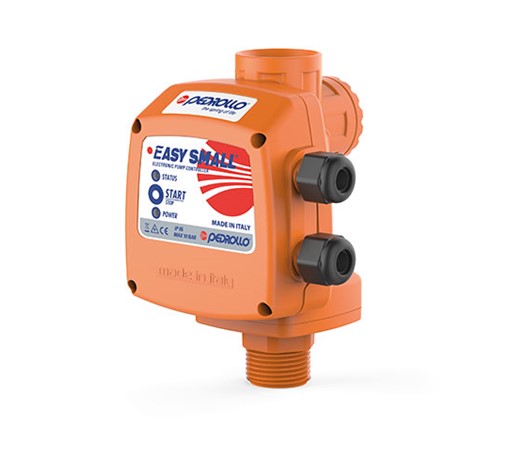

Easy Small 2M Electronic pump controller (with pressure gauge) PEDROLLO
€48.80
1 in stock
Flow & pressure sensing device for control and protection of single-phase pumps up to 2 HP (for domestic applications).
It starts the pump when there is a drop in system pressure (e.g. a tap opening) and stops the pump when the flow drops below
2 l/min (tap closed).
Features
Liquid type: Clean Water
Uses: domestic
Applications: irrigation pumps, water supply systems, pressure systems
typology: accessories
Family: easysmall-easypress-presflo multi
Application Limit:
- Temperature of the liquid to +50 °C
- Ambient Temperature to +40 °C
• Burst pressure 40 bar
• Protection grade: IP 65
• Voltage: 230 V - Frequency: 50/60 Hz
• Max current:
– 12 A-EASYSMALL-1
– 16 A-EASYSMALL-2
– 16 A-EASYSMALL-2

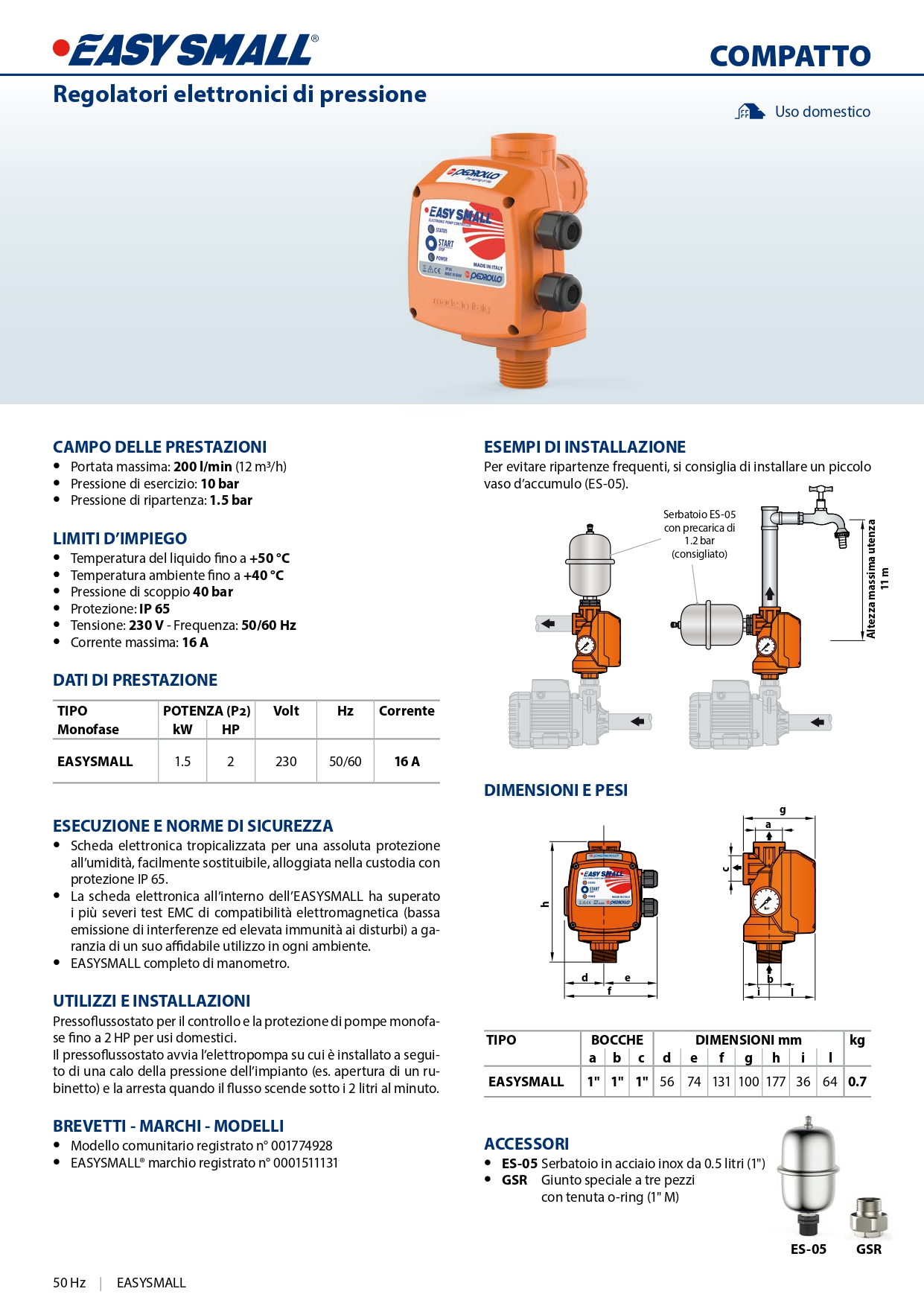

DOWNLOAD DATASHEET EASYSMALL en
Additional information
| Weight | 0.700 kg |
|---|---|
| Dimensions | 10 × 17.7 × 13.1 cm |
| Brand | |
| Power | 1.5kw, 2HP |
| Volt | 230 |
| Hz | 50/60 |
| Max. current | 16 A |
| Ports | F: 1″, M: 1″ |
